BU0836A 12-Bit Joystick Controller

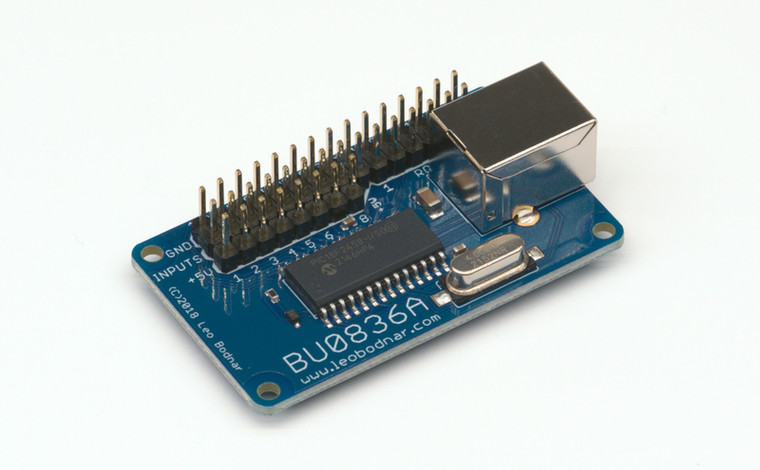

The BU0836A (LBE-1010 | LB-204) is a small USB joystick interface board with pin header connectors to connect buttons, potentiometers, sensors, rotary encoders and switches to a PC or Mac.
Build your own gaming device, whether it be a flight panel, button box, pedals, joystick, robot controls and more......the list is limited by your imagination.
Also suitable for converting gameport devices or connecting real life controls to turn them into a USB device suitable to be used by almost any simulation or game software without the need of installing any drivers.
Inputs
- 8 analog inputs with 12-bit (4096 steps) resolution each
- 32 button / 16 rotary encoder inputs
- 8-way "point-of-view" hat switch input
Dimensions
Length 2.2" | 55 mm
Width 1.25" | 32 mm
Height 0.57" | 14.6 mm
Recommended Wire Size 24 AWG to 20 AWG
Mounting Screw Hole Size M2.5 | #3-56 - do not enlarge the mounting holes
The PCB has a standard USB B type connector for connection to PC or Mac. No drivers are required
