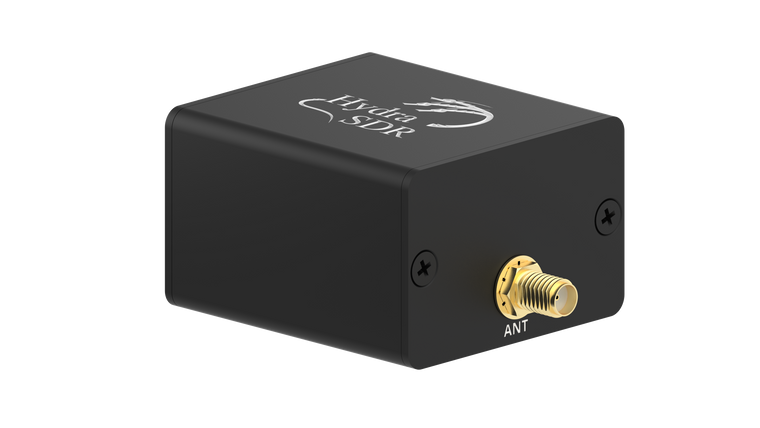

HydraSDR RFOne

HydraSDR RFOne

HydraSDR
SKU:
HYDR-0001
$189.99
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

HydraSDR RFOne is an open-source software defined radio receiver capable of sampling 10MHz of spectrum between 24 MHz to 1.8 GHz with extension capabilities for even broader coverage.

It delivers lab grade performance in a compact 54x49x32mm enclosure and is suitable for direction finding, radar experiments, and multi-receiver scanning systems. Enclosure supports up to three receiver boards for phase-coherent multi-channel operation.

Manufactured in the United States.

Technical specifications

Performance
  • continuous RX 24 MHz - 1.8 GHz
  • RF front-end IIP3 +35 dBm
  • noise figure 3.5 dB (42–1002 MHz) and 4.5 dB on two other input tracking RF filters
Digitization
  • 12-bit ADC 20 MSPS | 80 dB dynamic range | 64 dB SNR | 10.4 ENOB
  • IQ output rates 10 MSPS | 5 MSPS | 2.5 MSPS
  • 80 MSPS sampling with custom firmware
Signal Output
  • output streams IQ | real with 16-bit fixed | 32-bit floating point
  • 10 MHz panoramic spectrum up to 9 MHz alias | image-free bandwidth
  • no measurable IQ imbalance, DC offset, or 1/f noise at spectrum center
Timing
  • internal reference stability 0.5 ppm calibrated at manufacture
  • external clock distribution available via expansion
  • four programmable synchronized clock outputs up to 160 MHz
  • experimental packet time-stamping
IO
  • two high-speed ADC inputs, DC-coupled, up to 80 MSPS U.FL
  • 18 programmable high-speed GPIO up to 100 MHz
  • USB Type-C interface for data and power

Compatible with Linux | MacOS | Windows via GNU Radio | luaradio | RF Swift | SatDump | SDR++ | SoapyHydraSDR.
